Turret Board Revision 2

I received my turret boards from OSHPark. Here are OSHPark's generated images of the PCB.





I immediately set to soldering enough components to test the 3.5v power output from the voltage regulator. But ... after soldering on some capacitors, resistors, the regulator, and a JST connector, I had no power. I double-checked the schematic and saw that I completely screwed-up the power connection to the voltage regulator. I cut a trace with an X-acto and soldered a jumper and hooked it back up. I had very little power coming from the voltage regulator and it was quickly too hot to touch. I unplugged it before I melted something.

I'll have to go back to the schematic to determine why my jumper did not fix the power issue. I knew that I would have to perform multiple revisions but I'm disappointed to screw-up a board with such a basic mistake. I did not label my nets hardly on the schematic and I might have caught the issue if I had. My schematic for the main board is better labeled and I hope it does not suffer from such a basic mistake.

I tested the camera footprint and it fits mostly okay except the holes for the two plastic studs are mis-aligned. The holes for the metal tabs, though, work perfectly, even though they were kinda a guess. So I think that I will have this footprint perfect for the next revision, though I do think I would like to try a break-off board. This will allow me to place the camera pretty much wherever I want, instead of being forced to remain on the backside of the turret board. I can just run a 6-wire ribbon cable from the breakoff to the turret board. One potential issue: I do not know how much leeway I have, in terms of distance between the oscillator and the camera.

Something else I belatedly figured-out: The IR send library is hard-coded to use Arduino pin 3, because it relies on one of the ATMega's timers. In my main-board design (which has already been sent to OSHPark), I have the turret-motor Hall sensor connected to that pin. I did this because I wanted sensor on that fast-spinning motor to be connected to a hardware interrupt. Anyway, it should be easy to reroute the wiring so that the IR transmitter is connected to pin 3. I might just forgo the turret encoder when I hook-up this revision (this is assuming I can even run Blink on my first attempt at an ATMega standalone board).  Another mistake I realized I made before even I have received this board: I used inline resistors on the Hall-effect sensor lines, instead of pull-ups.

I've been playing with transistors to turn-off the IR beacon when the IR transmit is active (see last post), though I haven't determined whether it actually helps, since I do manage to transmit/receive signals when there is an IR light active, without the addition of this switch-off circuit.

Immediate to do for next version of turret board:
- Revise camera footprint and move it to a section of the board that can be broken-off
- Fix power circuit
- (potentially) add IR beacon turn-off circuit
- Add transistor to drive IR transmit LED, as it can use more current than the ATMega pin supplies

Comments

Post a Comment

Popular posts from this blog

Drive Problems

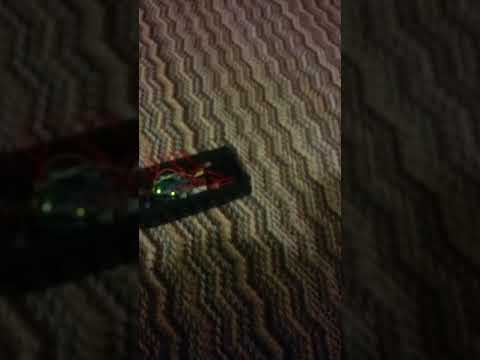

So I got the second version of my main board, the one with the increased motor traces, back last week sometime. I finally did solder most of it up and, initially, found only a couple of minor issues. One was that my screw terminals for my motor wires did not fit. Which is frustrating since that footprint was also wrong in my initial version. Now instead of two close together the pin holes are too far apart. Anyway, not a big deal as I can just solder the wires onto the board directly. The sonar module in the front of the tank (right side of the above image) was just hot-glued into some crude cut-outs and ended up pointing slightly downward such that it was reflecting against the ground. The led strip is just thrown into the tank (This strip comes with the tank and has a mounting position on the top chassis. I wanted it in my tank for debugging purposes: I am able to light two of the LEDs and give some visual feedback as to what is going on with the microcontroller...
